Features:

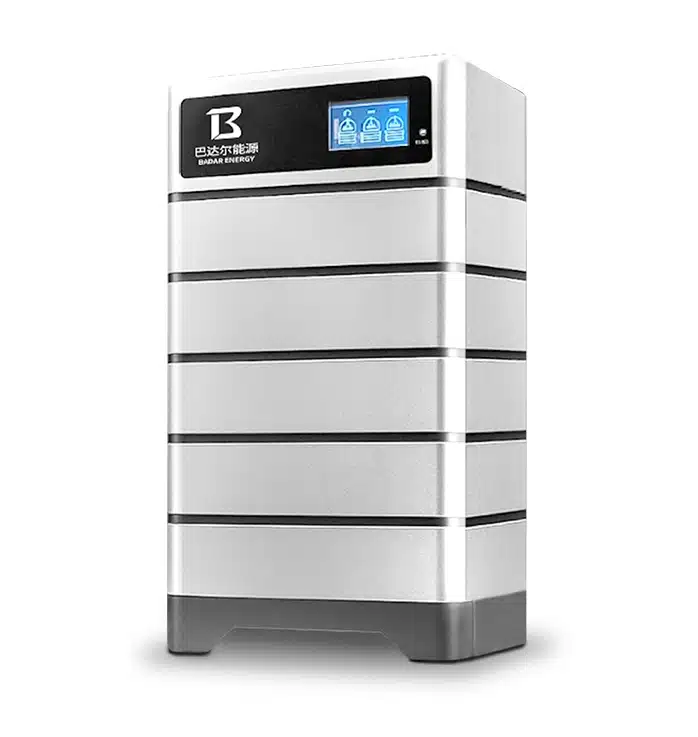

The 51.2V*(1-N-8) lithium battery offers a scalable energy storage solution with options ranging from 10kWh to 20kWh, making it perfect for larger homes, offices, and commercial solar installations. With a nominal voltage of 204.8V (Module 4) and a charging voltage of 233.6V, this battery ensures fast and efficient charging.
It can power a 1-ton air conditioner for up to 12 hours, thanks to its high energy density and 100% depth of discharge (DOD) capability. The battery supports 5000 cycles, ensuring long life and reliability for daily solar usage.
| No | Item | Specification | Module 2 | Module 4 | Module 6 | Module 8 |
|---|---|---|---|---|---|---|
| 1 | Configuration | 16S1P (1‑N‑8) | ||||
| 2 | Kilowatt Hour | 5.12kWh*(1-N-8) | 10kWh | 20kWh | 30kWh | 40kWh |
| 3 | Max Discharge | 1.2C | ||||
| 4 | Max Charge | 0.8C | ||||
| 5 | Nominal Voltage | 51.2V*(1-N-8) | 102.4V | 204.8V | 307.2V | 409.6V |
| 6 | Charging Voltage | 58.4V*(1-N-8) | 116.8V | 233.6V | 350.4V | 467.2V |
| 7 | Charging Cut‑off Current | 2A (0.02C) | 2A | |||
| 8 | Discharge Cut‑off Voltage | 40V*(1‑N‑8) | 80V | 160V | 240V | 320V |
| 9 | Standard Charging Method | Constant Current: 20A / Max Charge Current: 100A | Constant Current: 20A / Max Charge Current: 100A | |||
| 10 | Standard Discharging Method | Constant Current of 50A | 50A | |||
| 11 | BMS Max Continuous Discharge Current | 100A | ||||
| 12 | Discharge Peak Current | 120A±10A (200±100ms) | ||||
| 13 | Cycle Life | 5000 cycles (0.5C charge/discharge, ≥70%) | ||||
| 14 | Communication Mode | CAN / RS485 / Ethernet | ||||
| 15 | Weight (kg) | (Battery Module) | 119KG | 213KG | 307KG | 401KG |
| 16 | Size | 670*370*187.5mm | 670*370*H:535mm | 670*370*H:863mm | 670*370*H:1175mm | 670*370*H:1483mm |
| 17 | Operating Temperature | Charging: 0℃~55℃ / Discharging: -10℃~60℃ | ||||
| 18 | Storage Temperature | -10℃~45℃ | ||||
| 19 | Relative Humidity | 65%±20% | ||||
| 20 | Delivery Capacity | SOC60%±10% | ||||
