single phase hybrid inverter

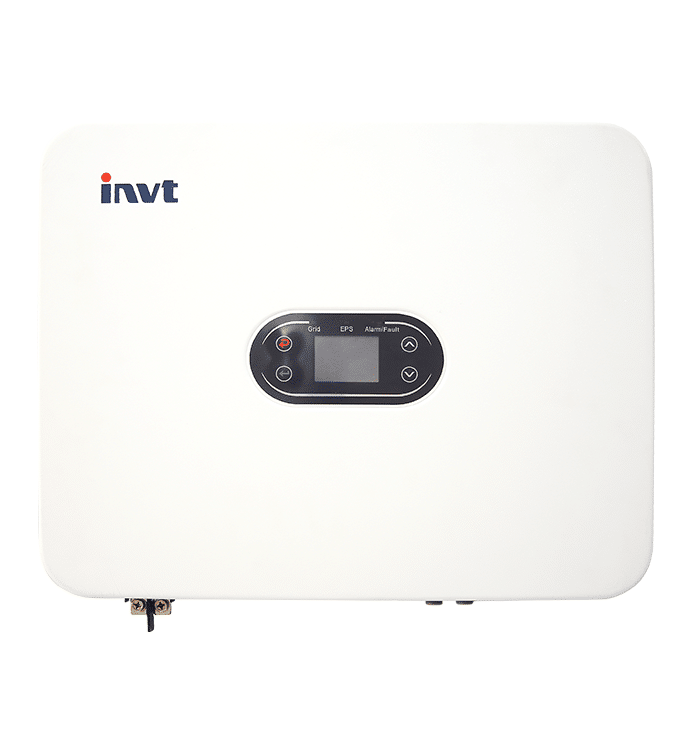

Solar Inverter

Model no: XD5 KTL

Features:

150% Peak Output Power
2 MPP Trackers, 150% DC Input Oversizing
Max. Efficiency
DC & AC type II SPD (Prevents lightning damage)
EPS Switching Under 10ms

Our system ensures efficient higher revenue with 150% peak output power, 2 MPP trackers allowing 150% DC input oversizing, and maximum efficiency for optimized performance. It also offers intelligent and simple O&M with an DC and AC type II SPD to prevent lightning damage, and battery reverse connection protection for enhanced safety. Moreover, the flexible and abundant configuration supports EPS switching under 10ms and allows multiple units to work in parallel, making it compatible with all battery types for greater scalability and adaptability.

Technical Specifications

INPUT (PV)
Max. PV Input Power	7.5kW
Max. PV Input Voltage	600V
Start-up Voltage	100V
Rated Voltage	360V
MPPT Voltage Range	100V~550V
Number of MPP trackers	2
Number of strings per MPPT	1/1
Max. Current per MPPT	16A
Max. Short Circuit Current per MPPT	24A

OUTPUT (AC)
Rated Output Power	5kVA
Max. Output Power	5.5kVA
Max. Output Current	22.7A
Rated Voltage	230V
Rated Frequency	50Hz/60Hz
THDi (@Rated Power)	< 3%
Power Factor	1

OUTPUT (EPS)
Max. Output Power	5kVA
Max. Output Current	22.7A
Peak Output Power, Time	7.5kW, 10s
Rated Voltage, Frequency	230V, 50Hz
THDv (@Rated Power)	< 3%
Switch Time	<10ms

BATTERY
Battery Type	Lithium, Lead-acid
Battery Voltage Range	40V~60V
Max. Charge/ Discharge Current	100A
Communication	CAN

EFFICIENCY
Max. Efficiency	97.50%
EU Efficiency	97.20%
Battery Charge/ Discharge Efficiency	95.00%

GENERAL DATA
Dimension (W x H x D)	481 x 390 x 200 mm
Weight	21.35 kg
Operating Temperature Range	-30°C ~ +60°C
Cooling Method	Natural
Max. Operating Altitude	4000m
Relative Humidity	0~100%
Self-consumption	< 10W
Topology	High Frequency Insolation (For battery)

COMMUNICATION
Display	LCD
Communication	RS485 / CAN / WIFI / 4G / LAN / Bluetooth

STANDARD COMPLIANCE
Certifications	IEC/EN 62109-1/2, IEC/EN 61000-6-1/3, IEC/EN 62116, EN50549, CEI 0-21 (IT), CEI 0-16, VDE0126, VDE4105, UNE217002, UNE217001, AS4777, NRS097-2-1
